<Huawei>sy
Enter system view, return user view with Ctrl+Z.
[Huawei]sy SW 1
[SW 1]
Jul 29 2025 21:59:38-08:00 SW 1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.2
5.191.3.1 configurations have been changed. The current change number is 4, the
change loop count is 0, and the maximum number of records is 4095.
[SW 1]sy SW1
[SW1]
Jul 29 2025 21:59:48-08:00 SW1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 5, the c
hange loop count is 0, and the maximum number of records is 4095.
[SW1]vl
[SW1]vlan ba 2 3 100
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW1]dis th
#
sysname SW1
#
vlan batch 2 to 3 100
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
return
[SW1]
Jul 29 2025 22:00:18-08:00 SW1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 6, the c
hange loop count is 0, and the maximum number of records is 4095.
[SW1]dis vlan
The total number of vlans is : 4
--------------------------------------------------------------------------------
U: Up; D: Down; TG: Tagged; UT: Untagged;
MP: Vlan-mapping; ST: Vlan-stacking;
#: ProtocolTransparent-vlan; *: Management-vlan;
--------------------------------------------------------------------------------
VID Type Ports
--------------------------------------------------------------------------------
1 common UT:GE0/0/1(U) GE0/0/2(U) GE0/0/3(U) GE0/0/4(D)
GE0/0/5(D) GE0/0/6(D) GE0/0/7(D) GE0/0/8(D)
GE0/0/9(D) GE0/0/10(D) GE0/0/11(D) GE0/0/12(D)
GE0/0/13(D) GE0/0/14(D) GE0/0/15(D) GE0/0/16(D)
GE0/0/17(D) GE0/0/18(D) GE0/0/19(D) GE0/0/20(D)
GE0/0/21(D) GE0/0/22(D) GE0/0/23(D) GE0/0/24(D)
2 common
3 common
100 common
VID Status Property MAC-LRN Statistics Description
--------------------------------------------------------------------------------
1 enable default enable disable VLAN 0001
2 enable default enable disable VLAN 0002
3 enable default enable disable VLAN 0003
100 enable default enable disable VLAN 0100
[SW1]int g0/0/1
[SW1-GigabitEthernet0/0/1]p
[SW1-GigabitEthernet0/0/1]port l
[SW1-GigabitEthernet0/0/1]port link-t
[SW1-GigabitEthernet0/0/1]port link-type h
[SW1-GigabitEthernet0/0/1]port link-type hybrid
[SW1-GigabitEthernet0/0/1]dis th
#
interface GigabitEthernet0/0/1
#
return
[SW1-GigabitEthernet0/0/1]p
[SW1-GigabitEthernet0/0/1]port h
[SW1-GigabitEthernet0/0/1]port hybrid vi
[SW1-GigabitEthernet0/0/1]port hybrid v
[SW1-GigabitEthernet0/0/1]port hybrid p
[SW1-GigabitEthernet0/0/1]port hybrid pvid v
[SW1-GigabitEthernet0/0/1]port hybrid pvid vlan 2
[SW1-GigabitEthernet0/0/1]int
Jul 29 2025 22:01:58-08:00 SW1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 7, the c
hange loop count is 0, and the maximum number of records is 4095.g
^
Error: Unrecognized command found at '^' position.
[SW1-GigabitEthernet0/0/1]int g0/0/3
[SW1-GigabitEthernet0/0/3]p h p v 3
[SW1-GigabitEthernet0/0/3]
Jul 29 2025 22:02:28-08:00 SW1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 8, the c
hange loop count is 0, and the maximum number of records is 4095.
[SW1-GigabitEthernet0/0/3]int g0/0/1
[SW1-GigabitEthernet0/0/1]dis th
#
interface GigabitEthernet0/0/1
port hybrid pvid vlan 2
#
return
[SW1-GigabitEthernet0/0/1]q
[SW1]dis po
[SW1]dis policy-vlan
^
Error:Incomplete command found at '^' position.
[SW1]dis p v
Port Link Type PVID Trunk VLAN List
-------------------------------------------------------------------------------
GigabitEthernet0/0/1 hybrid 2 -
GigabitEthernet0/0/2 hybrid 1 -
GigabitEthernet0/0/3 hybrid 3 -
GigabitEthernet0/0/4 hybrid 1 -
GigabitEthernet0/0/5 hybrid 1 -
GigabitEthernet0/0/6 hybrid 1 -
GigabitEthernet0/0/7 hybrid 1 -
GigabitEthernet0/0/8 hybrid 1 -
GigabitEthernet0/0/9 hybrid 1 -
GigabitEthernet0/0/10 hybrid 1 -
GigabitEthernet0/0/11 hybrid 1 -
GigabitEthernet0/0/12 hybrid 1 -
GigabitEthernet0/0/13 hybrid 1 -
GigabitEthernet0/0/14 hybrid 1 -
GigabitEthernet0/0/15 hybrid 1 -
GigabitEthernet0/0/16 hybrid 1 -
GigabitEthernet0/0/17 hybrid 1 -
GigabitEthernet0/0/18 hybrid 1 -
GigabitEthernet0/0/19 hybrid 1 -
GigabitEthernet0/0/20 hybrid 1 -
GigabitEthernet0/0/21 hybrid 1 -
GigabitEthernet0/0/22 hybrid 1 -
GigabitEthernet0/0/23 hybrid 1 -
GigabitEthernet0/0/24 hybrid 1 -
[SW1]int g0/0/1
[SW1-GigabitEthernet0/0/1]po
[SW1-GigabitEthernet0/0/1]port h
[SW1-GigabitEthernet0/0/1]port hybrid v
[SW1-GigabitEthernet0/0/1]port hybrid ?
pvid Specify current port's PVID VLAN characteristics
tagged Tagged
untagged Untagged
vlan Virtual LAN
[SW1-GigabitEthernet0/0/1]port hybrid un
[SW1-GigabitEthernet0/0/1]port hybrid untagged v
[SW1-GigabitEthernet0/0/1]port hybrid untagged vlan 2 100 去除标签， 想让pc 1 ping通pc3 是必须要要去除标签了，毕竟是两个vlan 的标签
[SW1-GigabitEthernet0/0/1]
Jul 29 2025 22:16:38-08:00 SW1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 9, the c
hange loop count is 0, and the maximum number of records is 4095.
[SW1-GigabitEthernet0/0/1]int g0/0/2
[SW1-GigabitEthernet0/0/2]dis th
#
interface GigabitEthernet0/0/2
#
return
[SW1-GigabitEthernet0/0/2]po
[SW1-GigabitEthernet0/0/2]port h
[SW1-GigabitEthernet0/0/2]port hybrid ?
pvid Specify current port's PVID VLAN characteristics
tagged Tagged
untagged Untagged
vlan Virtual LAN
[SW1-GigabitEthernet0/0/2]port hybrid t
[SW1-GigabitEthernet0/0/2]port hybrid tagged v
[SW1-GigabitEthernet0/0/2]port hybrid tagged vlan 2 3 100 打标签，
[SW1-GigabitEthernet0/0/2]
Jul 29 2025 22:21:38-08:00 SW1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 10, the
change loop count is 0, and the maximum number of records is 4095.
[SW1-GigabitEthernet0/0/2]dis th
#
interface GigabitEthernet0/0/2
port hybrid tagged vlan 2 to 3 100
#
return
[SW1-GigabitEthernet0/0/2] User interface con0 is available
Please Press ENTER.
Hybrid的tagger接口状态用于交换机与交换机之间的带标签通讯，untagger接口状态用于交换机和终端设备间的无标签通讯
tag 保留报文原有的vlan id 发送，
untag 弹出原有的vlan id 发送
1代表着接口发出数据时，对于标签的处理动作，
2代表着该接口允许这个vlan 通过，
1接口代表打上标签vlan 2 的发送出去
<Huawei>sy
Enter system view, return user view with Ctrl+Z.
[Huawei]sy SW2
[SW2]
Jul 29 2025 21:48:19-08:00 SW2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 4, the c
hange loop count is 0, and the maximum number of records is 4095.
[SW2]vlan b
[SW2]vlan batch 2 3 100
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW2]
Jul 29 2025 21:49:19-08:00 SW2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 5, the c
hange loop count is 0, and the maximum number of records is 4095.
[SW2]dis vlan
The total number of vlans is : 4
--------------------------------------------------------------------------------
U: Up; D: Down; TG: Tagged; UT: Untagged;
MP: Vlan-mapping; ST: Vlan-stacking;
#: ProtocolTransparent-vlan; *: Management-vlan;
--------------------------------------------------------------------------------
VID Type Ports
--------------------------------------------------------------------------------
1 common UT:GE0/0/1(U) GE0/0/2(U) GE0/0/3(D) GE0/0/4(D)
GE0/0/5(D) GE0/0/6(D) GE0/0/7(D) GE0/0/8(D)
GE0/0/9(D) GE0/0/10(D) GE0/0/11(D) GE0/0/12(D)
GE0/0/13(D) GE0/0/14(D) GE0/0/15(D) GE0/0/16(D)
GE0/0/17(D) GE0/0/18(D) GE0/0/19(D) GE0/0/20(D)
GE0/0/21(D) GE0/0/22(D) GE0/0/23(D) GE0/0/24(D)
2 common
3 common
100 common
VID Status Property MAC-LRN Statistics Description
--------------------------------------------------------------------------------
1 enable default enable disable VLAN 0001
2 enable default enable disable VLAN 0002
3 enable default enable disable VLAN 0003
100 enable default enable disable VLAN 0100
[SW2]int g0/0/2
[SW2-GigabitEthernet0/0/2]p h p v 100
[SW2-GigabitEthernet0/0/2]dis th
#
interface GigabitEthernet0/0/2
port hybrid pvid vlan 100
#
return
[SW2-GigabitEthernet0/0/2]
Jul 29 2025 21:52:49-08:00 SW2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 6, the c
hange loop count is 0, and the maximum number of records is 4095.
Jul 29 2025 21:54:29-08:00 SW2 %%01PHY/1/PHY(l)[0]: GigabitEthernet0/0/1: cha
nge status to down
Jul 29 2025 21:54:41-08:00 SW2 %%01PHY/1/PHY(l)[1]: GigabitEthernet0/0/1: cha
nge status to up
Jul 29 2025 21:55:12-08:00 SW2 %%01PHY/1/PHY(l)[2]: GigabitEthernet0/0/1: cha
nge status to down
Jul 29 2025 21:55:19-08:00 SW2 %%01PHY/1/PHY(l)[3]: GigabitEthernet0/0/1: cha
nge status to up
Jul 29 2025 21:58:21-08:00 SW2 %%01PHY/1/PHY(l)[4]: GigabitEthernet0/0/1: cha
nge status to down
Jul 29 2025 21:58:56-08:00 SW2 %%01PHY/1/PHY(l)[5]: GigabitEthernet0/0/1: cha
nge status to up User interface con0 is available
Please Press ENTER.
<SW2> User interface con0 is available
Please Press ENTER.
<SW2>sy
Enter system view, return user view with Ctrl+Z.
[SW2]int g0/0/1
[SW2-GigabitEthernet0/0/1]p h
[SW2-GigabitEthernet0/0/1]p
[SW2-GigabitEthernet0/0/1]port h
[SW2-GigabitEthernet0/0/1]port hybrid t
[SW2-GigabitEthernet0/0/1]port hybrid tagged v
[SW2-GigabitEthernet0/0/1]port hybrid tagged vlan 2 3 100
[SW2-GigabitEthernet0/0/1]
Jul 29 2025 22:24:50-08:00 SW2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 7, the c
hange loop count is 0, and the maximum number of records is 4095.
[SW2-GigabitEthernet0/0/1]int g0/0/2
[SW2-GigabitEthernet0/0/2]dis th
#
interface GigabitEthernet0/0/2
port hybrid pvid vlan 100
#
return
[SW2-GigabitEthernet0/0/2]po
[SW2-GigabitEthernet0/0/2]port h
[SW2-GigabitEthernet0/0/2]port hybrid un
[SW2-GigabitEthernet0/0/2]port hybrid untagged v
[SW2-GigabitEthernet0/0/2]port hybrid untagged vlan 2 报文弹出/
去除vlan 2
[SW2-GigabitEthernet0/0/2]
Jul 29 2025 22:26:40-08:00 SW2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 8, the c
hange loop count is 0, and the maximum number of records is 4095.
[SW2-GigabitEthernet0/0/2]dis th
#
interface GigabitEthernet0/0/2
port hybrid pvid vlan 100
port hybrid untagged vlan 2
#
return
[SW2-GigabitEthernet0/0/2]po h
[SW2-GigabitEthernet0/0/2]po
[SW2-GigabitEthernet0/0/2]port h
[SW2-GigabitEthernet0/0/2]port hybrid un
[SW2-GigabitEthernet0/0/2]port hybrid untagged v
[SW2-GigabitEthernet0/0/2]port hybrid untagged vlan 100
[SW2-GigabitEthernet0/0/2]

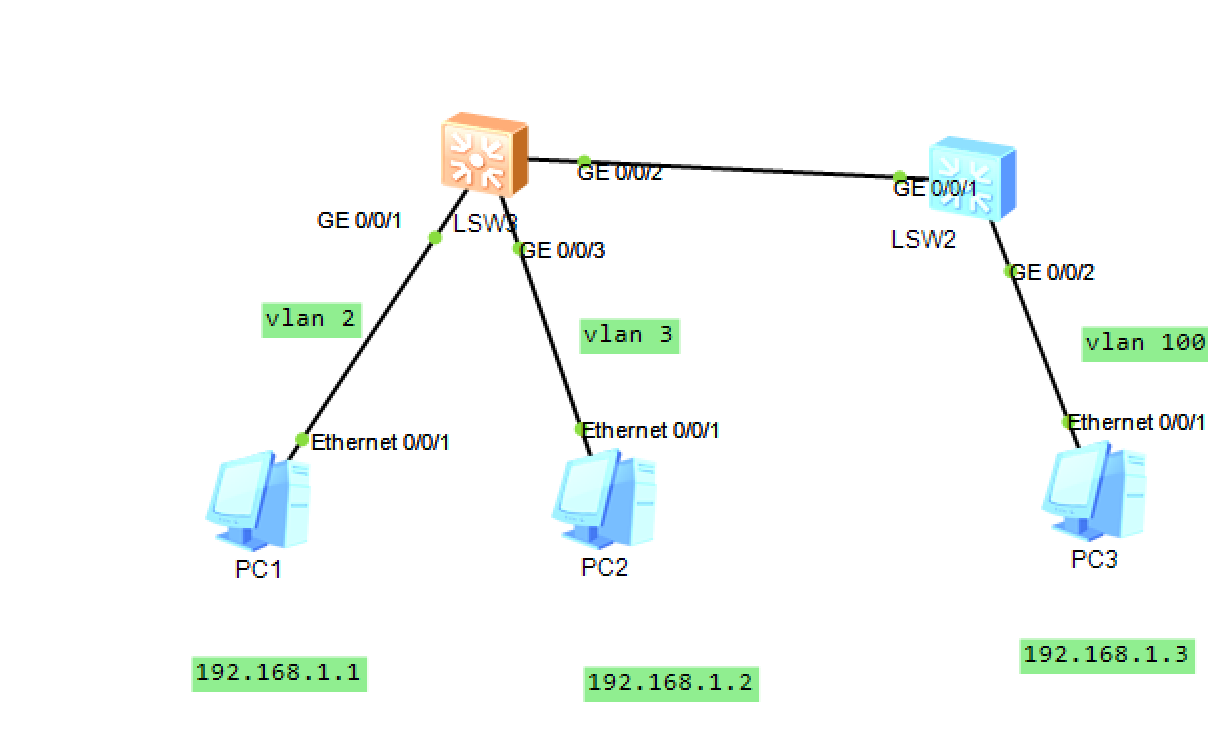

还有pc 1和pc 2 都可以ping 通pc3
SW1]int g0/0/3
[SW1-GigabitEthernet0/0/3]
[SW1-GigabitEthernet0/0/3]dis th 查看配置，
#
interface GigabitEthernet0/0/3
port hybrid pvid vlan 3
#
return
[SW1-GigabitEthernet0/0/3]int g0/0/1
[SW1-GigabitEthernet0/0/1]dis th
#
interface GigabitEthernet0/0/1
port hybrid pvid vlan 2
port hybrid untagged vlan 2 100 这是1接口的配置，
#
return
[SW1-GigabitEthernet0/0/1]int g0/0/3
[SW1-GigabitEthernet0/0/3]po
[SW1-GigabitEthernet0/0/3]port h
[SW1-GigabitEthernet0/0/3]port hybrid un
[SW1-GigabitEthernet0/0/3]port hybrid untagged v
[SW1-GigabitEthernet0/0/3]port hybrid untagged vlan 3 100 同样的需要弹出tag vlan 3 ，100 还有还有回复的包，
[SW1-GigabitEthernet0/0/3]
Jul 29 2025 23:03:29-08:00 SW1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 11, the
change loop count is 0, and the maximum number of records is 4095.在交换机2 ，
[SW2]int g0/0/2
[SW2-GigabitEthernet0/0/2]dis th
#
interface GigabitEthernet0/0/2
port hybrid pvid vlan 100
port hybrid untagged vlan 2 100
#
return
[SW2-GigabitEthernet0/0/2]po
[SW2-GigabitEthernet0/0/2]port h
[SW2-GigabitEthernet0/0/2]port hybrid un
[SW2-GigabitEthernet0/0/2]port hybrid untagged v
[SW2-GigabitEthernet0/0/2]port hybrid untagged vlan 3
[SW2-GigabitEthernet0/0/2]
Jul 29 2025 23:04:41-08:00 SW2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25
.191.3.1 configurations have been changed. The current change number is 10, the
change loop count is 0, and the maximum number of records is 4095.
[SW2-GigabitEthernet0/0/2]dis th
#
interface GigabitEthernet0/0/2
port hybrid pvid vlan 100
port hybrid untagged vlan 2 to 3 100
实验结果，pc 1,2 ,可以和pc 3 互通，使用接口 hybrid 是否弹出tag 理解它，
原创
接口hybrid 是否弹出tag
本文采用 CC BY-NC-SA 4.0 许可协议，转载请注明出处。
评论交流
欢迎留下你的想法
