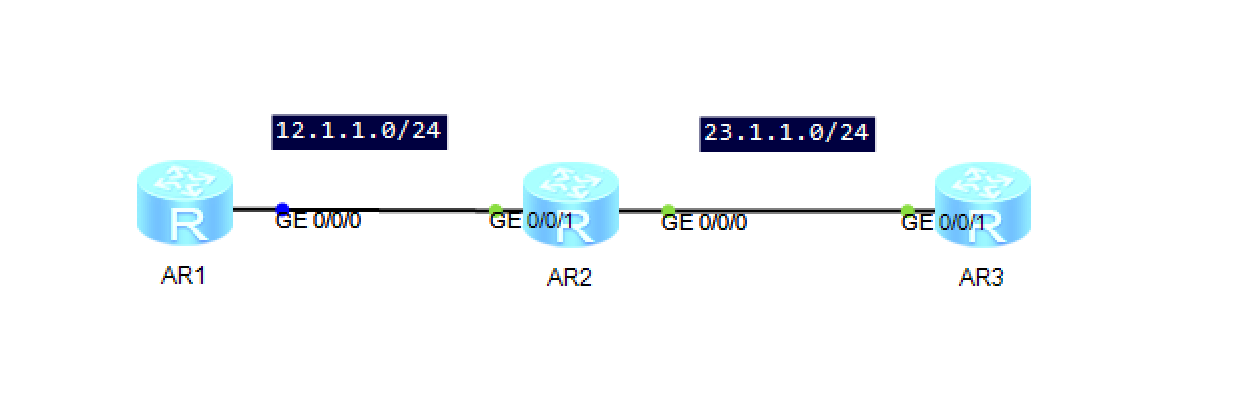

R1上操作
The device is running!
##########
<Huawei>sy
Enter system view, return user view with Ctrl+Z.
[Huawei]sy R1
[R1]undo in
[R1]undo info-center en
[R1]undo info-center enable
Info: Information center is disabled.
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip address 12.1.1.1 24 配置ip
[R1-GigabitEthernet0/0/0]undo sh
[R1-GigabitEthernet0/0/0]undo shutdown 激活接口
Info: Interface GigabitEthernet0/0/0 is not shutdown.
[R1-GigabitEthernet0/0/0]dis th
[R1-GigabitEthernet0/0/0]dis thi
[R1-GigabitEthernet0/0/0]di
[R1-GigabitEthernet0/0/0]di
[R1-GigabitEthernet0/0/0]direct-route
[R1-GigabitEthernet0/0/0]discard
[R1-GigabitEthernet0/0/0]display th
[R1-GigabitEthernet0/0/0]display this 查看刚才的配置内容
[V200R003C00]
#
interface GigabitEthernet0/0/0
ip address 12.1.1.1 255.255.255.0
#
return
[R1-GigabitEthernet0/0/0]q
[R1]ping 12.1.1.2
PING 12.1.1.2: 56 data bytes, press CTRL_C to break
Reply from 12.1.1.2: bytes=56 Sequence=1 ttl=255 time=70 ms
Reply from 12.1.1.2: bytes=56 Sequence=2 ttl=255 time=20 ms
Reply from 12.1.1.2: bytes=56 Sequence=3 ttl=255 time=20 ms
Reply from 12.1.1.2: bytes=56 Sequence=4 ttl=255 time=40 ms
Reply from 12.1.1.2: bytes=56 Sequence=5 ttl=255 time=10 ms
--- 12.1.1.2 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 10/32/70 ms
[R1]dis
[R1]display ip
[R1]display ip ro
[R1]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
Destinations : 7 Routes : 7
Destination/Mask Proto Pre Cost Flags NextHop Interface
12.1.1.0/24 Direct 0 0 D 12.1.1.1 GigabitEthernet
0/0/0
12.1.1.1/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/0
12.1.1.255/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/0
127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0
127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0
127.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
255.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
[R1]ip ro
[R1]ip route-
[R1]ip route-static
[R1]ip route-static 23.1.1.0 24
^
Error:Incomplete command found at '^' position.
[R1]ip route-static 23.1.1.0 24 12.1.1.2 ?
description Add or delete description of unicast static route
inherit-cost Inherit the cost of the iterated route
permanent Specifies route permanent
preference Specifies route preference
tag Specifies route tag
track Specify track object
<cr> Please press ENTER to execute command
[R1]ip route-static 23.1.1.0 24 12.1.1.2
[R1]dis ip ro
[R1]dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
Destinations : 8 Routes : 8
Destination/Mask Proto Pre Cost Flags NextHop Interface
12.1.1.0/24 Direct 0 0 D 12.1.1.1 GigabitEthernet
0/0/0
12.1.1.1/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/0
12.1.1.255/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/0
23.1.1.0/24 Static 60 0 RD 12.1.1.2 GigabitEthernet
0/0/0
127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0
127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0
127.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
255.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
[R1]ping 23.1.1.2
PING 23.1.1.2: 56 data bytes, press CTRL_C to break
Request time out
Request time out
Request time out
Request time out
Request time out
--- 23.1.1.2 ping statistics ---
5 packet(s) transmitted
0 packet(s) received
100.00% packet loss
[R1]ping 23.1.1.2
PING 23.1.1.2: 56 data bytes, press CTRL_C to break
Request time out
Request time out
Request time out
Request time out
Request time out
--- 23.1.1.2 ping statistics ---
5 packet(s) transmitted
0 packet(s) received
100.00% packet loss
[R1]ping 12.1.1.2
PING 12.1.1.2: 56 data bytes, press CTRL_C to break
Reply from 12.1.1.2: bytes=56 Sequence=1 ttl=255 time=20 ms
Reply from 12.1.1.2: bytes=56 Sequence=2 ttl=255 time=20 ms
Reply from 12.1.1.2: bytes=56 Sequence=3 ttl=255 time=30 ms
Reply from 12.1.1.2: bytes=56 Sequence=4 ttl=255 time=20 ms
Reply from 12.1.1.2: bytes=56 Sequence=5 ttl=255 time=20 ms
--- 12.1.1.2 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 20/22/30 ms
[R1]ping 23.1.1.2
PING 23.1.1.2: 56 data bytes, press CTRL_C to break
Request time out
Request time out
Request time out
Request time out
Request time out
--- 23.1.1.2 ping statistics ---
5 packet(s) transmitted
0 packet(s) received
100.00% packet loss
[R1]ping 23.1.1.2
PING 23.1.1.2: 56 data bytes, press CTRL_C to break
Reply from 23.1.1.2: bytes=56 Sequence=1 ttl=254 time=20 ms
Reply from 23.1.1.2: bytes=56 Sequence=2 ttl=254 time=20 ms
Reply from 23.1.1.2: bytes=56 Sequence=3 ttl=254 time=20 ms
Reply from 23.1.1.2: bytes=56 Sequence=4 ttl=254 time=20 ms
Reply from 23.1.1.2: bytes=56 Sequence=5 ttl=254 time=20 ms
--- 23.1.1.2 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 20/20/20 ms在R2上操作
undo info-center enable 主要是这个关闭回显信息，可关可 不关，看个人情况呢The device is running!
############################################################
<Huawei>
<Huawei>
<Huawei>
<Huawei>
<Huawei>
<Huawei>sy
Enter system view, return user view with Ctrl+Z.
[Huawei]undo in
[Huawei]undo info-center en
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]sy R3
[R3]int g0/0/1
[R3-GigabitEthernet0/0/1]ip add 12.1.1.2 24
[R3-GigabitEthernet0/0/1]undo shu
[R3-GigabitEthernet0/0/1]undo shutdown
Info: Interface GigabitEthernet0/0/1 is not shutdown.
[R3-GigabitEthernet0/0/1]int g0/0/0
[R3-GigabitEthernet0/0/0]ip add 23.1.1.1 24
[R3-GigabitEthernet0/0/0]undo sh
[R3-GigabitEthernet0/0/0]undo shutdown
Info: Interface GigabitEthernet0/0/0 is not shutdown.
[R3-GigabitEthernet0/0/0]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on在R3上操作
主要是下面个一条命令，查看路由表，
[Huawei]dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
Destinations : 8 Routes : 8
Destination/Mask Proto Pre Cost Flags NextHop Interface
12.1.1.0/24 Static 60 0 RD 23.1.1.1 GigabitEthernet
0/0/1
23.1.1.0/24 Direct 0 0 D 23.1.1.2 GigabitEthernet
0/0/1
23.1.1.2/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/1
23.1.1.255/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/1
127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0
127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0
127.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0##############
<Huawei>
Aug 11 2025 06:46:48-08:00 Huawei %%01IFPDT/4/IF_STATE(l)[0]:Interface GigabitEt
hernet0/0/1 has turned into UP state.
<Huawei>
<Huawei>
<Huawei>
<Huawei>
<Huawei>
<Huawei>
<Huawei>
<Huawei>
<Huawei>sy
Enter system view, return user view with Ctrl+Z.
[Huawei]un
[Huawei]undo in
[Huawei]undo info-center en
[Huawei]undo info-center enable
Info: Information center is disabled.
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]ip add 23.1.1.2 24
[Huawei-GigabitEthernet0/0/1]undo
[Huawei-GigabitEthernet0/0/1]undo shu
[Huawei-GigabitEthernet0/0/1]undo shutdown
Info: Interface GigabitEthernet0/0/1 is not shutdown.
[Huawei-GigabitEthernet0/0/1]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on
<Huawei>sy
Enter system view, return user view with Ctrl+Z.
[Huawei]ip ro
[Huawei]ip route-s
[Huawei]ip route-static 12.1.1.0 24 23.1.1.1
[Huawei]dis ip ro
[Huawei]dis ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
Destinations : 8 Routes : 8
Destination/Mask Proto Pre Cost Flags NextHop Interface
12.1.1.0/24 Static 60 0 RD 23.1.1.1 GigabitEthernet
0/0/1
23.1.1.0/24 Direct 0 0 D 23.1.1.2 GigabitEthernet
0/0/1
23.1.1.2/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/1
23.1.1.255/32 Direct 0 0 D 127.0.0.1 GigabitEthernet
0/0/1
127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0
127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0
127.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
255.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0
[Huawei]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on
