离线安装harbor 2.13.1

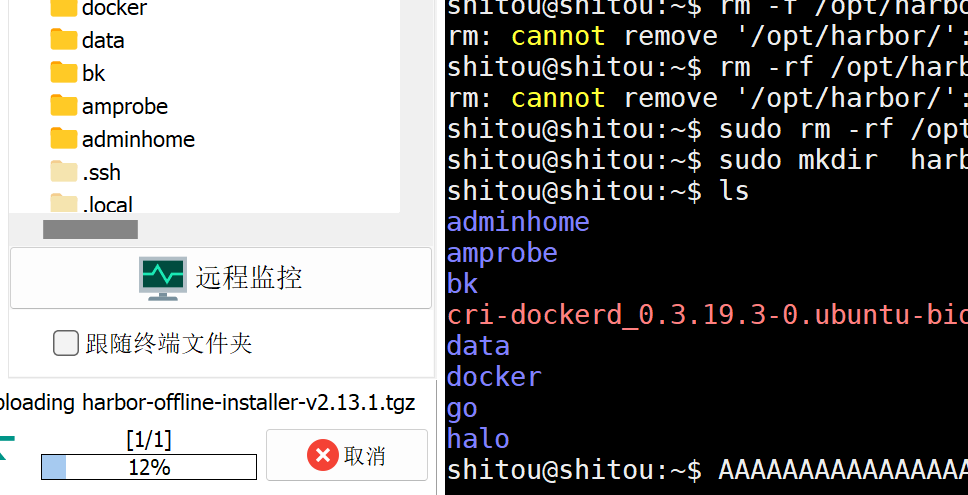

从官方下载这个https://github.com/goharbor/harbor/releases/download/v2.13.1/harbor-offline-installer-v2.13.1.tgz

shitou@shitou:~$ sudo tar -zxvf harbor-offline-installer-v2.13.1.tgz
harbor/harbor.v2.13.1.tar.gz
harbor/prepare
harbor/LICENSE
harbor/install.sh
harbor/common.sh
harbor/harbor.yml.tmpl

解压之后呢，就是进入文件夹

shitou@shitou:~$ ls
adminhome                                       jx
amprobe                                         kickstart.sh
bk                                              kubeadm-config.yaml
cri-dockerd_0.3.19.3-0.ubuntu-bionic_amd64.deb  mysql_8.1.0.tar
data                                            Netdata
docker                                          registry
go                                              registry.sh
halo                                            shitou
halohub.2.21.6.tar                              ub
harbor                                          ubuntu
harbor-offline-installer-v2.13.1.tgz            ubuntu.sources.list
hub                                             usr.sbin.libvirtd
installer
shitou@shitou:~$ cd harbor/
shitou@shitou:~/harbor$ ls
common.sh  harbor.v2.13.1.tar.gz  harbor.yml.tmpl  install.sh  LICENSE  prepare
cp -r /home/shitou/harbor /home/shitou/harbor.bf
复制一下做个备份，

shitou@shitou:~/harbor$ sudo cat harbor.yml
hostname: registry.local
https:
  port: 443
  certificate: /etc/docker/certs.d/registry.local:443/registry.crt
  private_key: /etc/docker/certs.d/registry.local:443/registry.key
harbor_admin_password: YourPassword123
data_volume: /home/shitou/harbor

  1. hostname: registry.local

    • 定义 Harbor 镜像仓库的主机名（或域名）。

    • 客户端（如 Docker）需要通过这个主机名访问 Harbor（例如 docker push registry.local/your-image:tag）。

    • 需确保客户端能解析这个主机名（可通过修改 /etc/hosts 或 DNS 配置实现）。

  2. https 部分
    配置 Harbor 的 HTTPS 加密通信（Harbor 推荐使用 HTTPS 保证安全性）：

    • port: 443：HTTPS 协议的默认端口（标准端口，客户端访问时可省略端口号）。

    • certificate: /etc/docker/certs.d/registry.local:443/registry.crt：指定 SSL 证书的路径。
      这个证书用于证明 registry.local 这个主机名的合法性，客户端会验证证书以确保通信安全。

    • private_key: /etc/docker/certs.d/registry.local:443/registry.key：指定 SSL 证书对应的私钥路径。
      私钥用于解密客户端发送的加密数据，需妥善保管，不能泄露。

  3. harbor_admin_password: YourPassword123

    • 定义 Harbor 管理员（admin 用户）的初始登录密码。

    • 首次登录 Harbor 的 Web 界面或通过 API 操作时，需使用此密码，建议部署后及时修改为强密码。

  1. data_volume: /home/shitou/Harbor

    • 指定 Harbor 的数据存储目录。

    • Harbor 运行时会产生大量数据（如镜像文件、数据库数据、日志等），都会保存在这个目录下。

    • 建议将此目录挂载到容量较大的磁盘，避免数据存储不足。

创建证书文件夹，

创建私钥，

然后创建证书，

验证证书文件文件如下操作

shitou@shitou:~/harbor$ sudo mkdir -p /etc/docker/certs.d/registry.local:443/
shitou@shitou:~/harbor$ sudo openssl genrsa -out /etc/docker/certs.d/registry.local:443/registry.key 2048
shitou@shitou:~/harbor$ sudo openssl req -new -x509 -days 3650 -key /etc/docker/certs.d/registry.local:443/registry.key \
  -out /etc/docker/certs.d/registry.local:443/registry.crt \
  -subj "/C=CN/ST=YourProvince/L=YourCity/O=YourCompany/OU=YourDepartment/CN=registry.local"
shitou@shitou:~/harbor$ ls -l /etc/docker/certs.d/registry.local:443/
total 8
-rw-r--r-- 1 root root 1403 Aug 21 10:28 registry.crt
-rw------- 1 root root 1704 Aug 21 10:23 registry.key

将证书添加到系统级的信任证书库，让所有应用（包括 Docker）都信任该证书

sudo cp /etc/docker/certs.d/registry.local:443/registry.crt /etc/docker/certs.d/registry.local:443/
cp: '/etc/docker/certs.d/registry.local:443/registry.crt' and '/etc/docker/certs.d/registry.local:443/registry.crt' are the same file
shitou@shitou:~/harbor$ sudo cp /etc/docker/certs.d/registry.local:443/registry.crt /usr/local/share/ca-certificates/
shitou@shitou:~/harbor$ sudo update-ca-certificates
Updating certificates in /etc/ssl/certs...
rehash: warning: skipping ca-certificates.crt,it does not contain exactly one certificate or CRL
1 added, 0 removed; done.
Running hooks in /etc/ca-certificates/update.d...
done.
shitou@shitou:~/harbor$ sudo systemctl restart docker


sudo ./prepare
prepare base dir is set to /home/shitou/harbor
Unable to find image 'goharbor/prepare:v2.13.1' locally

shitou@shitou:~/harbor$ pwd
/home/shitou/harbor
shitou@shitou:~/harbor$ sudo ./prepare
prepare base dir is set to /home/shitou/harbor
Unable to find image 'goharbor/prepare:v2.13.1' locally
v2.13.1: Pulling from goharbor/prepare
259e20632a89: Pull complete
7d3ece46a4c5: Pull complete
c1722bb1f878: Pull complete
8f5bfd06b81e: Pull complete
f798554d9e78: Pull complete
e391babcfe75: Pull complete
c79e2a1b427f: Pull complete
5b50d84a3d92: Pull complete
7f20adbb65c4: Pull complete
99c1d7ada9b9: Pull complete
Digest: sha256:4f4ea8cb379f8bcc61992bfe07b7abb661684223bdc2af14cb87727f912f3be0
Status: Downloaded newer image for goharbor/prepare:v2.13.1
Traceback (most recent call last):
  File "/usr/src/app/main.py", line 15, in <module>
    cli()
  File "/usr/lib/python3.11/site-packages/click/core.py", line 1137, in __call__
    return self.main(*args, **kwargs)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/click/core.py", line 1062, in main
    rv = self.invoke(ctx)
         ^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/click/core.py", line 1668, in invoke
    return _process_result(sub_ctx.command.invoke(sub_ctx))
                           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/click/core.py", line 1404, in invoke
    return ctx.invoke(self.callback, **ctx.params)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/click/core.py", line 763, in invoke
    return __callback(*args, **kwargs)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/src/app/commands/prepare.py", line 33, in prepare
    config_dict = parse_yaml_config(conf, with_trivy=with_trivy)
                  ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/src/app/utils/configs.py", line 225, in parse_yaml_config
    config_dict['max_job_workers'] = js_config["max_job_workers"]
                                     ~~~~~~~~~^^^^^^^^^^^^^^^^^^^
KeyError: 'max_job_workers'

启动
shitou@shitou:~/harbor$ sudo ./install.sh

sudo ./install/sh启动仓库

报错


shitou@shitou:~/harbor$ sudo ./install.sh

[Step 0]: checking if docker is installed ...

Note: docker version: 28.3.3

[Step 1]: checking docker-compose is installed ...

Note: Docker Compose version v2.39.1

[Step 2]: loading Harbor images ...
a1c062b75037: Loading layer  112.5MB/112.5MB
Loaded image: goharbor/nginx-photon:v2.13.1
0313db149044: Loading layer  8.661MB/8.661MB
979a1d806ec4: Loading layer  4.096kB/4.096kB
95fcbc8f5e7d: Loading layer  3.072kB/3.072kB
1563cc5ca85f: Loading layer  18.22MB/18.22MB
9052cd037f14: Loading layer  19.01MB/19.01MB
Loaded image: goharbor/registry-photon:v2.13.1
2a74242fce76: Loading layer  9.154MB/9.154MB
7051c425c9f6: Loading layer  4.096kB/4.096kB
09bf6325cada: Loading layer  3.072kB/3.072kB
62bfb82cbb95: Loading layer  152.9MB/152.9MB
88175ab477ee: Loading layer  15.55MB/15.55MB
def8aedceb03: Loading layer  169.3MB/169.3MB
Loaded image: goharbor/trivy-adapter-photon:v2.13.1
129a0c114767: Loading layer  16.74MB/16.74MB
5d882b32fd1d: Loading layer  175.4MB/175.4MB
bb5aed1e6368: Loading layer  26.55MB/26.55MB
6e3e69b3fa5d: Loading layer  18.81MB/18.81MB
87b25df5bc9d: Loading layer   5.12kB/5.12kB
2df2b670a3fd: Loading layer  6.144kB/6.144kB
c7bc696996b7: Loading layer  3.072kB/3.072kB
7464dffdebc4: Loading layer  2.048kB/2.048kB
f2bf3eb38932: Loading layer   2.56kB/2.56kB
eb18adfd748d: Loading layer  14.85kB/14.85kB
Loaded image: goharbor/harbor-db:v2.13.1
668f8134d9ee: Loading layer  8.661MB/8.661MB
136a010438aa: Loading layer  4.096kB/4.096kB
13ecff9c6c3c: Loading layer  18.22MB/18.22MB
9175e80e9d6c: Loading layer  3.072kB/3.072kB
e3fa69edda63: Loading layer  37.94MB/37.94MB
0fae968fe6dc: Loading layer  56.95MB/56.95MB
Loaded image: goharbor/harbor-registryctl:v2.13.1
484fc2e66f7a: Loading layer  11.61MB/11.61MB
9728d2f8d35e: Loading layer  38.17MB/38.17MB
042d109f1f08: Loading layer  4.608kB/4.608kB
55e101fed5da: Loading layer  38.96MB/38.96MB
Loaded image: goharbor/harbor-exporter:v2.13.1
6df01472c12f: Loading layer  16.74MB/16.74MB
1ca8d10018a5: Loading layer  110.6MB/110.6MB
dc97fcdae1e6: Loading layer  3.072kB/3.072kB
0f4f6ee28fb0: Loading layer   59.9kB/59.9kB
d7c041e4d4c7: Loading layer  61.95kB/61.95kB
Loaded image: goharbor/redis-photon:v2.13.1
1ee71c057d05: Loading layer  11.61MB/11.61MB
6ed9dc4c93ef: Loading layer  3.584kB/3.584kB
4fb3c4dc127f: Loading layer   2.56kB/2.56kB
7a90943a3266: Loading layer  61.27MB/61.27MB
692a3cf4d69a: Loading layer  62.06MB/62.06MB
Loaded image: goharbor/harbor-jobservice:v2.13.1
Loaded image: goharbor/prepare:v2.13.1
8e54ebad2e30: Loading layer  112.5MB/112.5MB
fcddba002ec2: Loading layer  6.835MB/6.835MB
f189708e4ec1: Loading layer  252.9kB/252.9kB
12a44914e0ce: Loading layer  1.539MB/1.539MB
Loaded image: goharbor/harbor-portal:v2.13.1
d7b9b7bbef30: Loading layer  11.61MB/11.61MB
bbf71872cc8e: Loading layer  3.584kB/3.584kB
ed64e383afa8: Loading layer   2.56kB/2.56kB
06299919dcf1: Loading layer  72.79MB/72.79MB
a526ab30ecef: Loading layer  5.632kB/5.632kB
3a688ffbe170: Loading layer    128kB/128kB
71a181ad7580: Loading layer  209.9kB/209.9kB
3dfba38dce7a: Loading layer  73.92MB/73.92MB
3e180e143141: Loading layer   2.56kB/2.56kB
Loaded image: goharbor/harbor-core:v2.13.1
7713ddec7223: Loading layer  125.3MB/125.3MB
7cc1fa8f95b9: Loading layer  3.584kB/3.584kB
6618ef51f460: Loading layer  3.072kB/3.072kB
1c2336412318: Loading layer   2.56kB/2.56kB
1a0f2bad6ce4: Loading layer  3.072kB/3.072kB
361f15319e64: Loading layer  3.584kB/3.584kB
f7e7f16d4ceb: Loading layer  20.48kB/20.48kB
Loaded image: goharbor/harbor-log:v2.13.1


[Step 3]: preparing environment ...

[Step 4]: preparing harbor configs ...
prepare base dir is set to /home/shitou/harbor
Traceback (most recent call last):
  File "/usr/src/app/main.py", line 15, in <module>
    cli()
  File "/usr/lib/python3.11/site-packages/click/core.py", line 1137, in __call__
    return self.main(*args, **kwargs)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/click/core.py", line 1062, in main
    rv = self.invoke(ctx)
         ^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/click/core.py", line 1668, in invoke
    return _process_result(sub_ctx.command.invoke(sub_ctx))
                           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/click/core.py", line 1404, in invoke
    return ctx.invoke(self.callback, **ctx.params)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/lib/python3.11/site-packages/click/core.py", line 763, in invoke
    return __callback(*args, **kwargs)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/src/app/commands/prepare.py", line 33, in prepare
    config_dict = parse_yaml_config(conf, with_trivy=with_trivy)
                  ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/usr/src/app/utils/configs.py", line 225, in parse_yaml_config
    config_dict['max_job_workers'] = js_config["max_job_workers"]
                                     ~~~~~~~~~^^^^^^^^^^^^^^^^^^^
KeyError: 'max_job_workers'


shitou@shitou:~/harbor$ sudo rm -rf /etc/docker/certs.d/registry.local:443
shitou@shitou:~/harbor$ sudo mkdir -p /etc/docker/certs.d/192.168.31.19:443
shitou@shitou:~/harbor$ sudo openssl genrsa -out /etc/docker/certs.d/192.168.31.19:443/registry.key 2048
shitou@shitou:~/harbor$ sudo openssl req -new -key /etc/docker/certs.d/192.168.31.19:443/registry.key -out /tmp/registry.csr \
  -subj "/C=CN/ST=YourProvince/L=YourCity/O=YourCompany/OU=YourDepartment/CN=192.168.31.19"
shitou@shitou:~/harbor$ sudo openssl x509 -req -days 3650 -in /tmp/registry.csr -signkey /etc/docker/certs.d/192.168.31.19:443/registry.key \
  -out /etc/docker/certs.d/192.168.31.19:443/registry.crt
Certificate request self-signature ok
subject=C = CN, ST = YourProvince, L = YourCity, O = YourCompany, OU = YourDepartment, CN = 192.168.31.19
shitou@shitou:~/harbor$ sudo rm /tmp/registry.csr

sudo ./prepare

cd ~/harbor

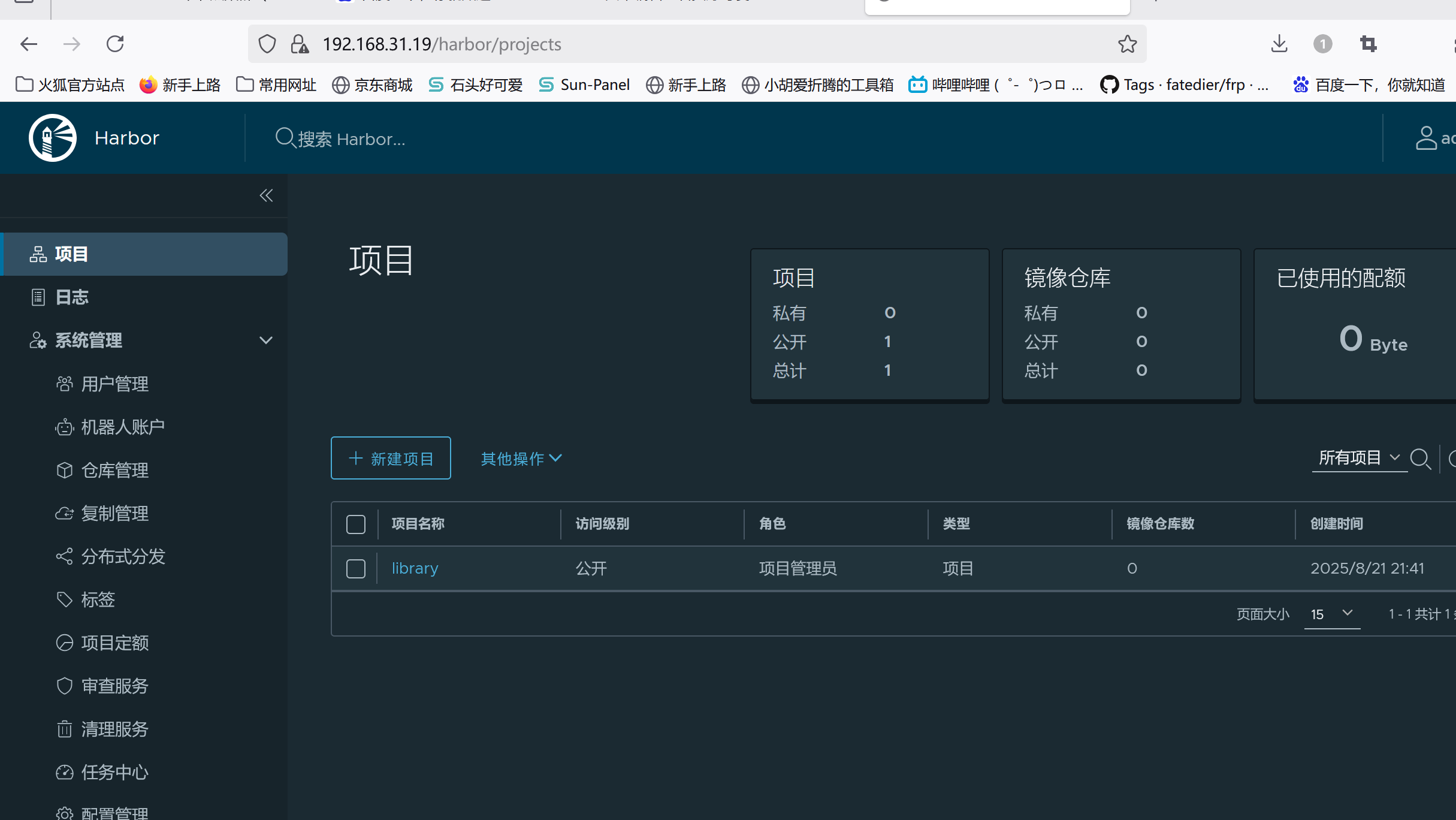

sudo docker compose up -d

在 ~/harbor 目录执行 sudo docker compose down -v && sudo docker compose up -d 即可

shitou@shitou:~/harbor$ cat docker-compose.yml
services:
  log:
    image: goharbor/harbor-log:v2.13.1
    container_name: harbor-log
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - DAC_OVERRIDE
      - SETGID
      - SETUID
    volumes:
      - /var/log/harbor/:/var/log/docker/:z
      - type: bind
        source: ./common/config/log/logrotate.conf
        target: /etc/logrotate.d/logrotate.conf
      - type: bind
        source: ./common/config/log/rsyslog_docker.conf
        target: /etc/rsyslog.d/rsyslog_docker.conf
    ports:
      - 127.0.0.1:1514:10514
    networks:
      - harbor
  registry:
    image: goharbor/registry-photon:v2.13.1
    container_name: registry
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
    volumes:
      - /var/harbor_data/registry:/storage:z
      - ./common/config/registry/:/etc/registry/:z
      - type: bind
        source: /var/harbor_data/secret/registry/root.crt
        target: /etc/registry/root.crt
      - type: bind
        source: ./common/config/shared/trust-certificates
        target: /harbor_cust_cert
    networks:
      - harbor
    depends_on:
      - log
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://localhost:1514"
        tag: "registry"
  registryctl:
    image: goharbor/harbor-registryctl:v2.13.1
    container_name: registryctl
    env_file:
      - ./common/config/registryctl/env
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
    volumes:
      - /var/harbor_data/registry:/storage:z
      - ./common/config/registry/:/etc/registry/:z
      - type: bind
        source: ./common/config/registryctl/config.yml
        target: /etc/registryctl/config.yml
      - type: bind
        source: ./common/config/shared/trust-certificates
        target: /harbor_cust_cert
    networks:
      - harbor
    depends_on:
      - log
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://localhost:1514"
        tag: "registryctl"
  postgresql:
    image: goharbor/harbor-db:v2.13.1
    container_name: harbor-db
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - DAC_OVERRIDE
      - SETGID
      - SETUID
    volumes:
      - /var/harbor_data/database:/var/lib/postgresql/data:z
    networks:
      harbor:
    env_file:
      - ./common/config/db/env
    depends_on:
      - log
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://localhost:1514"
        tag: "postgresql"
    shm_size: '1gb'
  core:
    image: goharbor/harbor-core:v2.13.1
    container_name: harbor-core
    env_file:
      - ./common/config/core/env
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - SETGID
      - SETUID
    volumes:
      - /var/harbor_data/ca_download/:/etc/core/ca/:z
      - /var/harbor_data/:/data/:z
      - ./common/config/core/certificates/:/etc/core/certificates/:z
      - type: bind
        source: ./common/config/core/app.conf
        target: /etc/core/app.conf
      - type: bind
        source: /var/harbor_data/secret/core/private_key.pem
        target: /etc/core/private_key.pem
      - type: bind
        source: /var/harbor_data/secret/keys/secretkey
        target: /etc/core/key
      - type: bind
        source: ./common/config/shared/trust-certificates
        target: /harbor_cust_cert
    networks:
      harbor:
    depends_on:
      - log
      - registry
      - redis
      - postgresql
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://localhost:1514"
        tag: "core"
  portal:
    image: goharbor/harbor-portal:v2.13.1
    container_name: harbor-portal
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
      - NET_BIND_SERVICE
    volumes:
      - type: bind
        source: ./common/config/portal/nginx.conf
        target: /etc/nginx/nginx.conf
    networks:
      - harbor
    depends_on:
      - log
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://localhost:1514"
        tag: "portal"

  jobservice:
    image: goharbor/harbor-jobservice:v2.13.1
    container_name: harbor-jobservice
    env_file:
      - ./common/config/jobservice/env
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
    volumes:
      - /var/harbor_data/job_logs:/var/log/jobs:z
      - type: bind
        source: ./common/config/jobservice/config.yml
        target: /etc/jobservice/config.yml
      - type: bind
        source: ./common/config/shared/trust-certificates
        target: /harbor_cust_cert
    networks:
      - harbor
    depends_on:
      - core
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://localhost:1514"
        tag: "jobservice"
  redis:
    image: goharbor/redis-photon:v2.13.1
    container_name: redis
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
    volumes:
      - /var/harbor_data/redis:/var/lib/redis
    networks:
      harbor:
    depends_on:
      - log
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://localhost:1514"
        tag: "redis"
  proxy:
    image: goharbor/nginx-photon:v2.13.1
    container_name: nginx
    restart: always
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - SETGID
      - SETUID
      - NET_BIND_SERVICE
    volumes:
      - ./common/config/nginx:/etc/nginx:z
      - /var/harbor_data/secret/cert:/etc/cert:z
      - type: bind
        source: ./common/config/shared/trust-certificates
        target: /harbor_cust_cert
    networks:
      - harbor
    ports:
      - 80:8080
      - 443:8443
    depends_on:
      - registry
      - core
      - portal
      - log
    logging:
      driver: "syslog"
      options:
        syslog-address: "tcp://localhost:1514"
        tag: "proxy"
networks:
  harbor:
    external: false

最后是再其他客户端

shitou@aishitou:~$ sudo mkdir -p /etc/docker/certs.d/192.168.31.19:443
[sudo] password for shitou:
shitou@aishitou:~$ sudo scp shitou@192.168.31.19:/etc/docker/certs.d/192.168.31.19:443/registry.crt /etc/docker/certs.d/192.168.31.19:443/
The authenticity of host '192.168.31.19 (192.168.31.19)' can't be established.
ED25519 key fingerprint is SHA256:2W8bDIh1As1xJWGSxNtVlR3u+qgZQRIppgPbHyJhwis.
This key is not known by any other names.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.31.19' (ED25519) to the list of known hosts.
shitou@192.168.31.19's password:
registry.crt                                                           100% 1277   531.8KB/s   00:00
shitou@aishitou:~$ sudo systemctl restart docker

site logo

Hi,Friend

© 2025 石头好可爱
